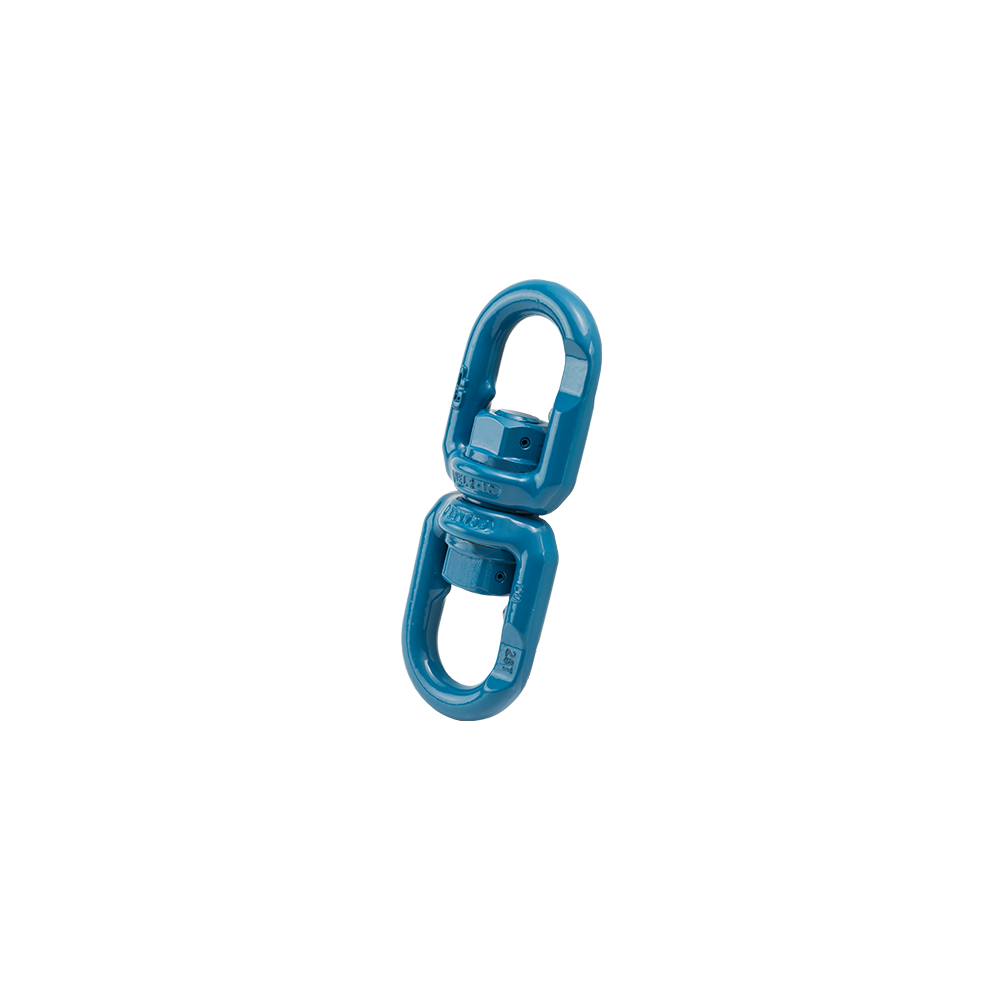

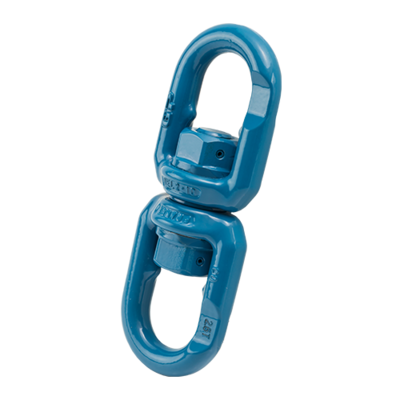

The Green Pin® Needle Bearing Swivel EE is a grade 10 needle bearing eye-eye swivel. Needle bearing swivels are used to prevent any transfer of the normal twisting motion from the load to the chain. These swivels are fitted with a needle roller thrust bearing on both eyes. This enables smooth, easy rotation under load. The Green Pin® Needle Bearing Swivel EE is available in a range to suit 6 mm up to 20 mm grade 10 chain.
Certification: at no extra charge this product can be supplied with a works certificate, a 3.1 material certificate and/or EC Declaration of Conformity
- Material: alloy steel, quenched and tempered
- Marking: CE-marked
- Temperature range: -40°C up to +200°C
- Finish: painted blue
- Note: equipped with two needle roller thrust bearings to enable rotation under load
- Safety factor: 4:1
- Grade: 10
