General:

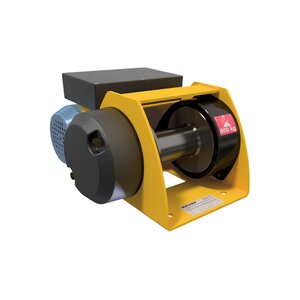

Electric winch for loads from 250 up to 1500 kg with low voltage control and 1 speed.
Multifunctional electric winch offering many rope attachments, rope outlets and options. Robust and compact, it benefits of a high operating factor for all kind of applications such as for example: Industrial applications, Building and public works, Theatre applications, Integration into many types of devices, cranes, material lifts etc.
Technical properties:
- Welded steel drum.
- Aluminium casing.
- The low voltage control protects the user from electrical risks.
- Asynchronous, single phase motors (230 V – 50 Hz P=0.75 or 1.1 kW depending on the models)
- Threephase motors (230/400 V – 50 Hz P= 0.75 or 1.1 kW depending on the models).
- Reducer sealed in oil bath with helical gears.
- 24 V or 190 V direct current electromagnetic brake (depending on the models).
- Electrical equipment under sealed cover.
- Very low voltage, 24 V remote control with socket – IP 65 protection.
Optional:
- Limit switch
- Radio control
- Load limiter
- Lengthened drum models. Wirerope capacity will increase by 1.5 x standard capacity.
- Material: Aluminum casing / Steel drum
- Marking: CE-marked
- Temperature range: -10°C to +50°C.
- Warning: If the winch is used for lifting of a load, a limit switch is mandatory!
|
Type
|
Drum
|
Measurements (mm)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Model
|
type
|
A
|
B
|
C
|
Ø D
|
E
|
Ø F
|
G
|
H
|
J
|
K
|
L
|
M
|
N
|
T
|
|
TRBOXTER 250 to 500 kg
|
standard
|
462
|
243
|
79
|
121
|
255
|
10.5
|
197
|
284.5
|
23
|
356
|
419.5
|
121.5
|
121.5
|
230
|
|
|
long
|
462
|
243
|
79
|
121
|
370
|
10.5
|
197
|
284.5
|
23
|
471
|
534.5
|
121.5
|
121.5
|
345
|
|
TRBOXTER 600 to 1500 kg
|
standard
|
554
|
304
|
105.5
|
159
|
318
|
12.5
|
246
|
332.5
|
29
|
493.5
|
515.5
|
152
|
152
|
290
|
|
|
long
|
554
|
304
|
105.5
|
159
|
461
|
12.5
|
246
|
332.5
|
29
|
493.5
|
656
|
152
|
152
|
435
|
