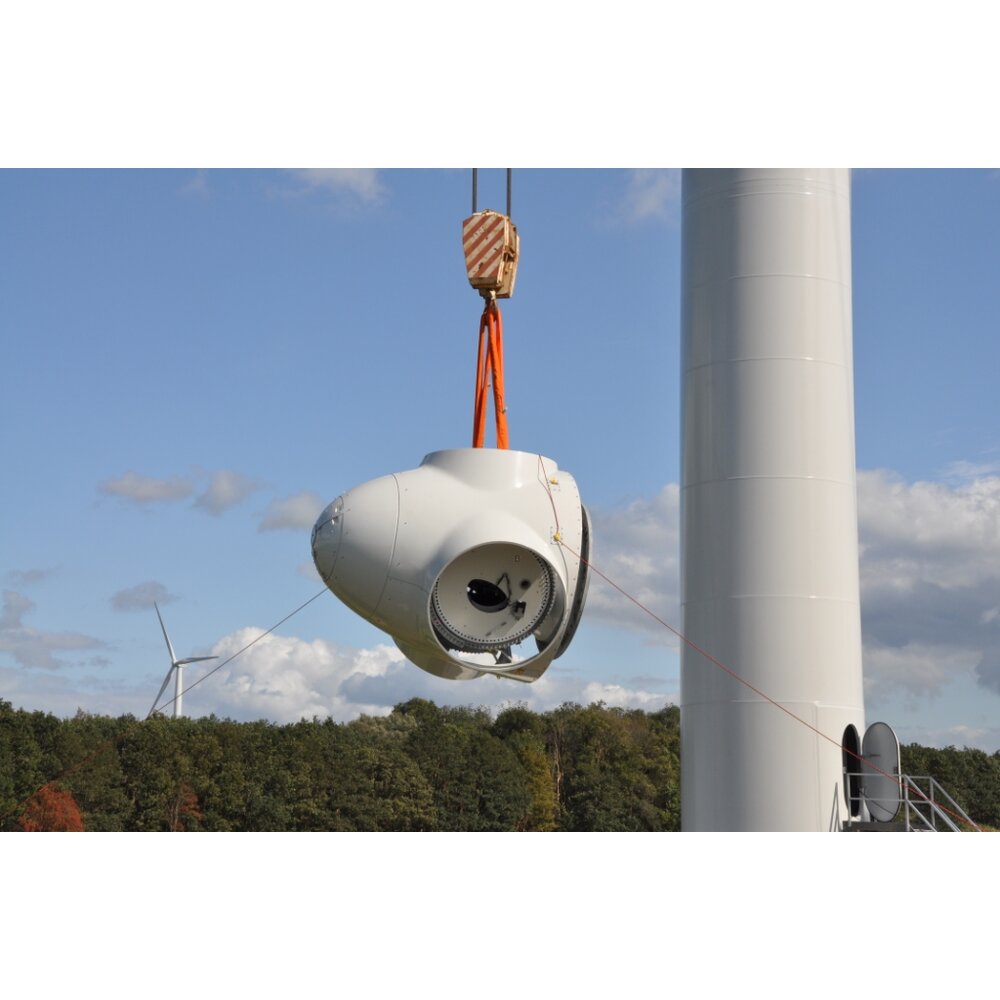

Round Sling Polyester - Heavy-Lift

High quality product with very small length tolerances produced in Europe. Produced in capacities (WLL) up to 300 tons. Available with different types of protection.
Chemical resistance: Resistant to most acids, but not strong alkalizes.
Certificate: CE-Declaration. DNV/Lloyd's Proofload certi

Show more

Show table
Product number:
  • The product is equipped with RFID chip

High quality product with very small length tolerances produced in Europe. Produced in capacities (WLL) up to 300 tons. Available with different types of protection.
Chemical resistance: Resistant to most acids, but not strong alkalizes.
Certificate: CE-Declaration. DNV/Lloyd's Proofload certificates on demand.

Characteristics:

  • High life cycle if correctly used (with proper protections).
  • Very flexible, cost saving and easy to handle.
  • Excellent technical performance.
  • High lifting capacity. (Be aware of big diameters in polyester in combination with shackles/hooks).
  • Different sling configurations (on demand).
  • Small length tolerances.
  • More options for RFID.
  • Extra protection on demand. The use of (extra) appropriate protections is always recommended on the bearing points.
  • Different protections for sharp edges, corners, etc. (PES, PU, PVC, HMPE).
  • Material: 100% High Tenacity Polyester core and cover.
  • Marking: According to standard, CE-marked, manufacturer’s symbol, working load limit (WLL), length, and a label with handling instruction.
  • Temperature range: -40°C up to +100°C.
  • Standard: EN 1492-2
  • Note: Slings should be protected from edges, friction and abrasion, whether from the load or the lifting appliance. Where reinforcements and protection against damage from edges and/or abrasion is supplied as part of the sling, this should be correctly positioned. It may be necessary to supplement this with additional protection.
  • Safety factor: 7:1

Roundsling polyester

EN 1492-1

Safety Factor 7:1

Straight pull Basket hitch Choke hitch Basket hitch
andlos-rakt andlos-uform andlos-snarat vinkel
0°−45° 45°−60°
Color Working load limit (WLL) in tons
Purple 1,0 2,0 0,8 1,4 1,0
Green 2,0 4,0 1,6 2,8 2,0
Yellow 3,0 6,0 2,4 4,2 3,0
Grey 4,0 8,0 3,2 5,6 4,0
Red 5,0 10,0 4,0 7,0 5,0
Brown 6,0 12,0 4,8 8,4 6,0
Blue 8,0 16,0 6,4 11,2 8,0
Orange 10,0 20,0 8,0 14,0 10,0
Orange 12,0 24,0 9,6 16,8 12,00
Orange 15,0 30,0 12,0 21,0 15,0
Orange 20,0 40,0 16,0 28,0 20,0
Orange 25,0 50,0 20,0 35,0 25,0
Orange 30,0 60,0 24,0 42,0 30,0
Orange 35,0 70,0 28,0 49,0 35,0
Orange 40,0 80,0 32,0 56,0 40,0
Orange 50,0 100,0 40,0 70,0 50,0
Orange 60,0 120,0 48,0 84,0 60,0
Orange 70,0 140,0 56,0 98,0 70,0
Orange 80,0 160,0 64,0 112,0 80,0
Orange 85,0 170,0 68,0 119,0 85,0
Orange 90,0 180,0 72,0 126,0 90,0
Orange 100,0 200,0 80,0 140,0 100,0
Orange 125,0 250,0 100,0 175,0 125,0
Orange 150,0 300,0 120,0 210,0 150,0
Orange 175,0 350,0 140,0 245,0 175,0
Orange 180,0 360,0 144,0 252,0 180,0
Orange 200,0 400,0 160,0 280,0 200,0
Factor (KL) 1 2 0,8 1,4 1
