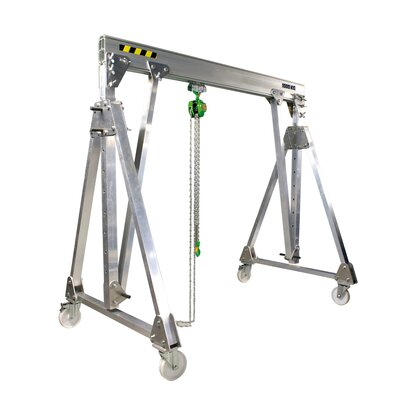

There are many sites which have the particularity of requiring mobile and in great quantities lifting equipments. Lightness and robustness are the advantages of aluminium gantry structure.
- Light construction
- Capacities
- 250 kg
- 500 kg
- 1000 kg (span max. 6m)
- 1600 kg (span max. 5m)
- 2000 kg (span max. 4m)
- Bolted joints
- Easy assembly with 8 bolts between leg and beam
- Assembly requires 1 to 3 people, according to model
- Flexibility of movement due to its light weight
- Hollow-section gantry girder
- Hoist trolley provided
- Height under beam can be adjusted by single person
- Dismountable in 3 elements, with foldable feet
- Feet fold up for transport
- White polyamide wheels, with 2 locking wheels
- Maximum hoisting speed = 8m/min
Options
- Banded polyurethane wheels
- 2 additional locking wheels
- Non-rotating wheels
- Hoist power supply cable
- Size can be adjusted to your needs by request
- Electric or manual hoist
