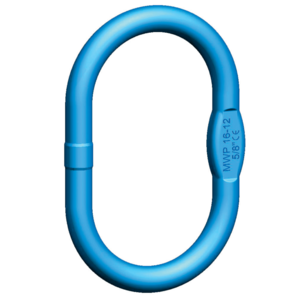

The Green Pin® Master Link Assembly is a grade 10 master link assembly. This welded master link assembly is designed for 3 or 4 leg sling. The flat on the eye enables the assembly with an omega link or on a thimble. The Green Pin® Master Link Assembly is available in a range with a working load limit from 3.65 t. up to 41.6 t.
Certification: at no extra charge this product can be supplied with a works certificate and/or EC Declaration of Conformity
- Material: alloy steel, quenched and tempered
- Temperature range: -40°C up to +200°C
- Finish: painted blue
- Safety factor: 4:1
- Grade: 10
